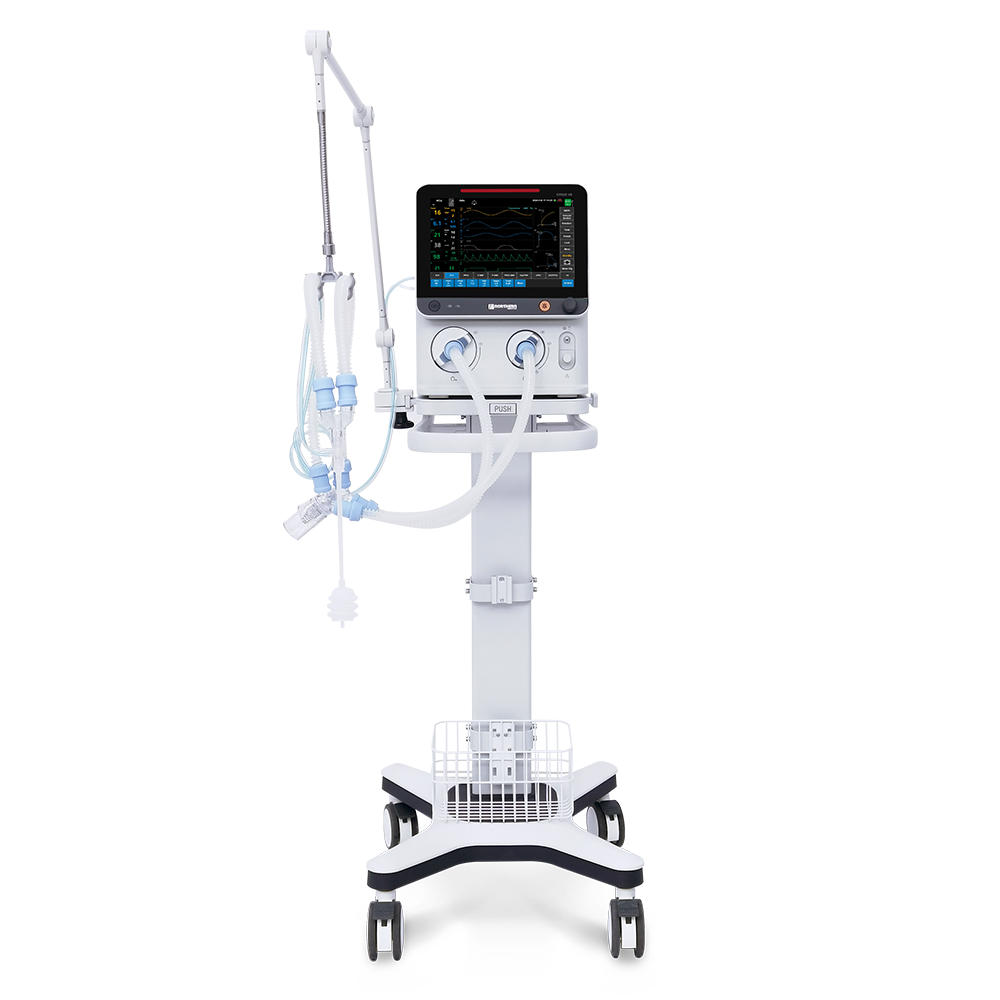

Northern MeditecNorthern Meditec Crius V8 — turbine-driven ICU ventilator (8-language UI)
Turbine-driven adult / pediatric / neonatal ICU ventilator — 12" adjustable touchscreen, 8-language UI (EN/TR/HU/FR/IT/DE/ES/CN), full adaptive mode set (VC/PC/PVC-ACV, SIMV variants, AMV, CPAP-VG, dual-PAP, APRV). Neonatal sensor option down to 2 mL TV.
Commercial offer on request
Configuration, accessories, lead time and service tier are quoted to your scope. Our specialists return a tailored offer within two business hours.
- Manufacturer warranty
- Worldwide delivery
- Installation & training
- Full documentation pack
Overview
The Crius V8 is an advanced automated adaptive assisted wide-range ventilation system — turbine-driven, electronic microprocessor controlled by volume and pressure for adult, pediatric and neonatal patients. 12" touchscreen with adjustable position. Multilingual UI: Chinese, English, Turkish, Hungarian, French, Italian, German, Spanish. Invasive modes: VC-ACV, PC-ACV, PVC-ACV (Pressure Volume Controlled Assist Control), VC/PC/PVC-SIMV, CPAP/PSV, Apnea Ventilation, PC-Dual PAP, PC-APRV, CPAP-VG, AMV (Adaptive Minute Ventilation). Non-invasive modes: PC-ACV, PVC-ACV, PC-SIMV, PVC-SIMV, PC-Dual PAP, PC-APRV, CPAP/PSV, CPAP-VG, Apnea Ventilation, NHFC (nasal high-flow humidification O2), nCPAP. Tidal volume: 100–2000 mL adult, 20–400 pediatric, 5–200 neonatal, 2–200 with optional neonatal sensor. PEEP 0–50, FiO2 21–100 %, Rate 1–100 bpm, I:E 4:1 to 1:10. Integrated self-check (POST: leak check + system tightness). Auto leakage compensation. Auto trigger adjustment on flow and pressure. Volumetric capnography (EtCO2) + SpO2 standard. AMV minimizes work of breathing under target minute ventilation. High + low pressure oxygen inlets (low-pressure for transport / hyperbaric cylinder). 2× 5200 mAh batteries, 6 h autonomy. 323 × 392 × 255 mm.
Key features
- Turbine-driven adult / pediatric / neonatal ICU ventilator
- 12" adjustable touchscreen
- Multilingual UI: CN / EN / TR / HU / FR / IT / DE / ES (8 languages)
- Full adaptive mode set including AMV (Adaptive Minute Ventilation)
- CPAP-VG (volume guarantee), PC-Dual PAP, PC-APRV
- Non-invasive modes including NHFC + nCPAP
- Optional neonatal sensor — tidal volume down to 2 mL
- Tidal volume 100–2000 / 20–400 / 5–200 mL by patient class
- Integrated self-check (POST: leak + tightness)
- Auto leakage compensation + auto trigger adjustment
- Volumetric capnography (EtCO2) + SpO2 standard
- High + low pressure oxygen inlets (transport / hyperbaric support)
- 2× 5200 mAh hot-swap lithium, 6 h autonomy
- 323 × 392 × 255 mm footprint
Clinical applications
ICU — adult / pediatric / neonatalTransport-rated configurationsNICU (with neonatal sensor)
Gallery
Specifications
- Display
- 12" adjustable position touchscreen
- Languages (UI)
- CN / EN / TR / HU / FR / IT / DE / ES
- Patient range
- Adult / pediatric / neonatal
- Invasive modes
- VC-ACV, PC-ACV, PVC-ACV, VC/PC/PVC-SIMV, CPAP/PSV, Apnea, PC-Dual PAP, PC-APRV, CPAP-VG, AMV
- Non-invasive modes
- PC-ACV, PVC-ACV, PC/PVC-SIMV, PC-Dual PAP, PC-APRV, CPAP/PSV, CPAP-VG, Apnea, NHFC, nCPAP
- Tidal volume
- 100–2000 (adult) · 20–400 (ped) · 5–200 (neo) · 2–200 (neo sensor opt)
- PEEP / CPAP
- 0–50 cmH2O
- FiO2
- 21–100 %
- Rate
- 1–100 bpm
- I:E
- 4:1 to 1:10
- Battery
- 2× 5200 mAh hot-swap lithium, 6 h
- Oxygen inlets
- High-pressure (280–600 kPa) + low-pressure (≤100 kPa, 15 L/min)
- Dimensions
- 323 × 392 × 255 mm
