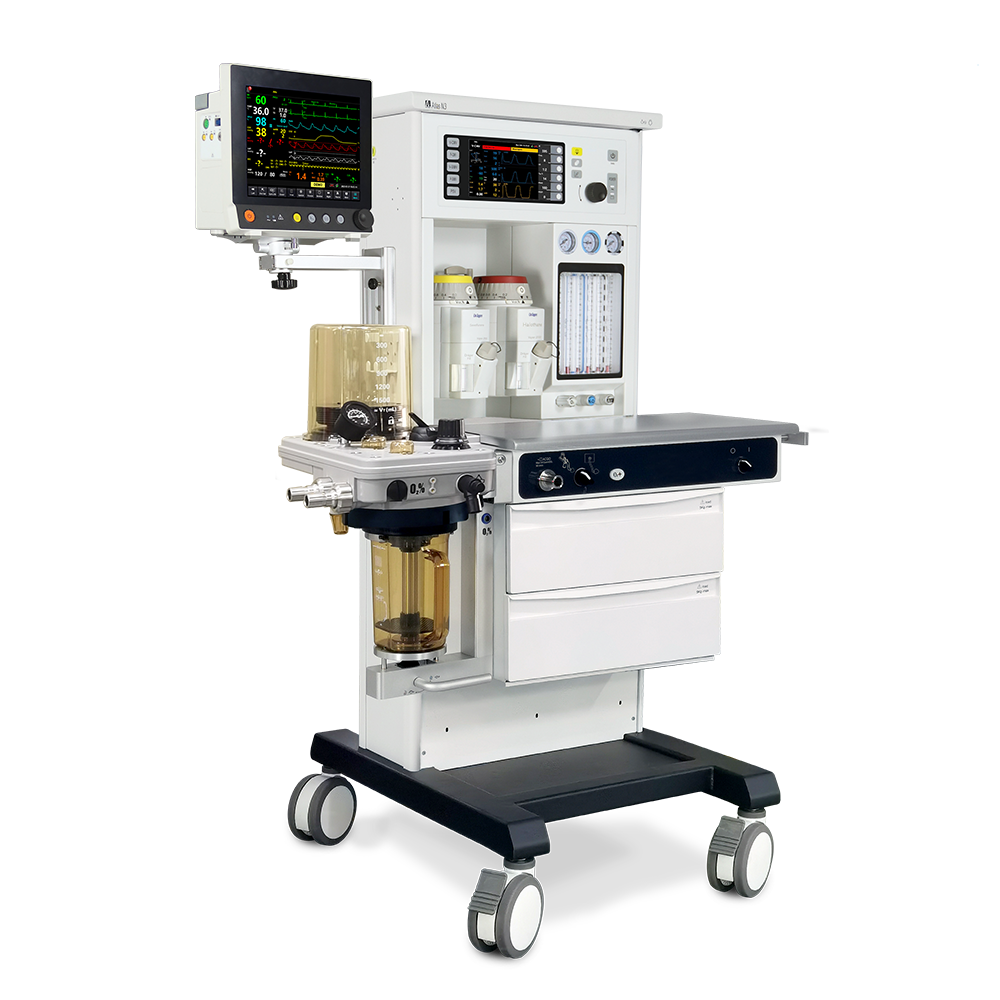

Northern MeditecNorthern Meditec Atlas N3 — entry anesthesia workstation
Entry-tier anesthesia workstation — 8" / 10.1" TFT display, mechanical flowmeter (6 tubes for 3 gases), dual Selectatec vaporizer bar, tidal volume 10–1500 mL, full mode set covering neonatal / pediatric / adult.
Commercial offer on request
Configuration, accessories, lead time and service tier are quoted to your scope. Our specialists return a tailored offer within two business hours.
- Manufacturer warranty
- Worldwide delivery
- Installation & training
- Full documentation pack
Overview
The Atlas N3 is the entry tier of Northern Meditec's Atlas anesthesia workstation line — closed-circuit architecture with a by-pass soda-lime canister that can be safely changed mid-case. An 8" / 10.1" TFT display (optional touchscreen) drives the workflow, paired with a mechanical flowmeter (6 flow tubes for 3 gases). Tidal volume 10–1500 mL covers neonatal, pediatric and adult patients across modes V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby and Manual/Spont. The dual-position Selectatec vaporizer bar accepts Drager / Penlon / Northern vaporizers. Integrated breathing-circuit heater (PPSU / metallic, autoclavable to 134 °C), spirometry loops (P-V, P-F, F-V + reference), optional CO2 / AG gas-monitor module, and a 1× 4800 mAh lithium battery (opt. 2× 9600 mAh) round out the platform. H 146 cm × W 90 cm × D 71 cm with four 125 mm wheels and 2 separate brakes.
Key features
- 8" / 10.1" TFT display (touchscreen optional) — 800×480
- Mechanical flowmeter — 6 flow tubes for 3 gases (O2 / N2O / AIR)
- Dual-position Selectatec vaporizer bar (Drager / Penlon / Northern)
- Tidal volume 10–1500 mL — neonatal / pediatric / adult
- Modes: V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby, Manual/Spont
- By-pass soda-lime canister — change mid-case safely
- Integrated breathing-circuit heater (PPSU / metallic, autoclavable to 134 °C)
- Spirometry loops: P-V, P-F, F-V + reference
- Optional CO2 / AG gas-monitor module
- Lithium battery — 1× 4800 mAh standard (opt. 2× 9600 mAh)
- Four 125 mm wheels with 2 separate brakes
Clinical applications
OR — adult / pediatric / neonatalDay-surgery and outpatient OR
Gallery
Specifications
- Display
- 8" / 10.1" TFT, 800×480 (touchscreen optional)
- Flowmeter
- Mechanical — 6 tubes for 3 gases
- Vaporizer positions
- Dual Selectatec bar (Drager / Penlon / Northern)
- Tidal volume
- 10–1500 mL
- Patient range
- Neonatal / pediatric / adult
- Modes
- V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby, Manual/Spont
- Spirometry loops
- P-V, P-F, F-V, reference
- Battery
- 1× 4800 mAh standard (opt. 2× 9600 mAh)
- Dimensions
- H 146 × W 90 × D 71 cm (with casters)
- Wheels
- Four 125 mm with 2 separate brakes
