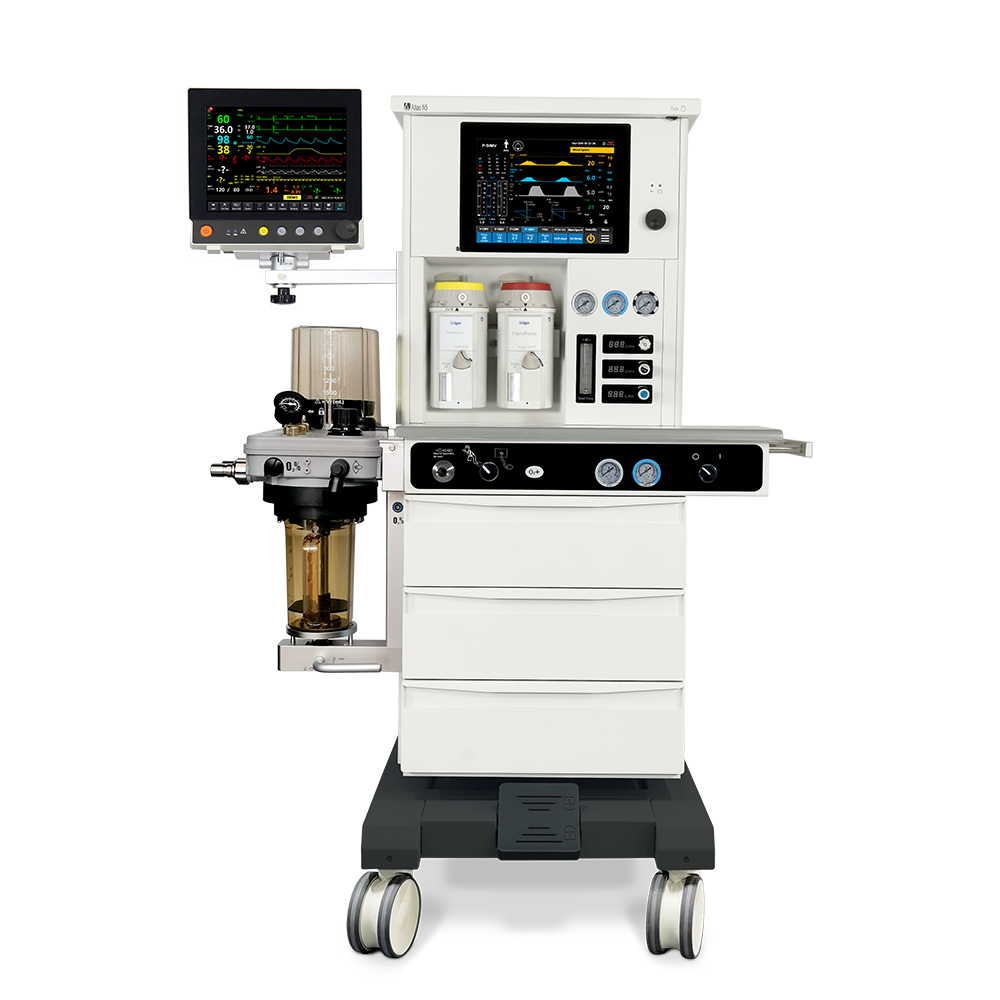

Northern MeditecNorthern Meditec Atlas N5 — mid-tier anesthesia workstation
Mid-tier anesthesia workstation — 12" TFT touch screen (800×600), electronic flowmeter, dual Selectatec vaporizer bar, tidal volume 10–1500 mL with full V-CMV/P-CMV mode coverage (PSV/SIMV optional).
Commercial offer on request
Configuration, accessories, lead time and service tier are quoted to your scope. Our specialists return a tailored offer within two business hours.
- Manufacturer warranty
- Worldwide delivery
- Installation & training
- Full documentation pack
Overview
The Atlas N5 sits in the mid tier of Northern Meditec's Atlas anesthesia line — adding a 12" TFT touch screen and an electronic flowmeter over the mechanical N3. Closed-circuit architecture with by-pass soda-lime canister and integrated breathing-circuit heater are shared with the rest of the family. Modes cover V-CMV, P-CMV, Standby and Manual/Spont as standard, with PSV / V-SIMV / P-SIMV available as options. Dual-position Selectatec vaporizer bar accepts Drager / Penlon / Northern vaporizers. Tidal volume range 10–1500 mL for neonatal / pediatric / adult patients. Spirometry loops (P-V, P-F, F-V + reference) standard. 1× 4800 mAh lithium battery (opt. 2× 9600 mAh). H 130 cm × W 90 cm × D 71 cm.
Key features
- 12" TFT touch screen — 800×600
- Electronic flowmeter (vs N3 mechanical)
- Dual-position Selectatec vaporizer bar
- Tidal volume 10–1500 mL — neonatal / pediatric / adult
- Modes standard: V-CMV, P-CMV, Standby, Manual/Spont
- Modes optional: PSV, V-SIMV, P-SIMV
- By-pass soda-lime canister
- Integrated breathing-circuit heater (autoclavable PPSU/metallic)
- Spirometry loops: P-V, P-F, F-V + reference
- Lithium battery — 1× 4800 mAh standard (opt. 2× 9600 mAh)
Clinical applications
OR — adult / pediatric / neonatalDay-surgery / outpatient ORGeneral hospital OR
Gallery
Specifications
- Display
- 12" TFT touch screen, 800×600
- Flowmeter
- Electronic
- Vaporizer positions
- Dual Selectatec bar (Drager / Penlon / Northern)
- Tidal volume
- 10–1500 mL
- Patient range
- Neonatal / pediatric / adult
- Modes
- V-CMV, P-CMV (std); PSV, V-SIMV, P-SIMV (opt)
- Spirometry loops
- P-V, P-F, F-V, reference
- Battery
- 1× 4800 mAh standard (opt. 2× 9600 mAh)
- Dimensions
- H 130 × W 90 × D 71 cm (with casters)
