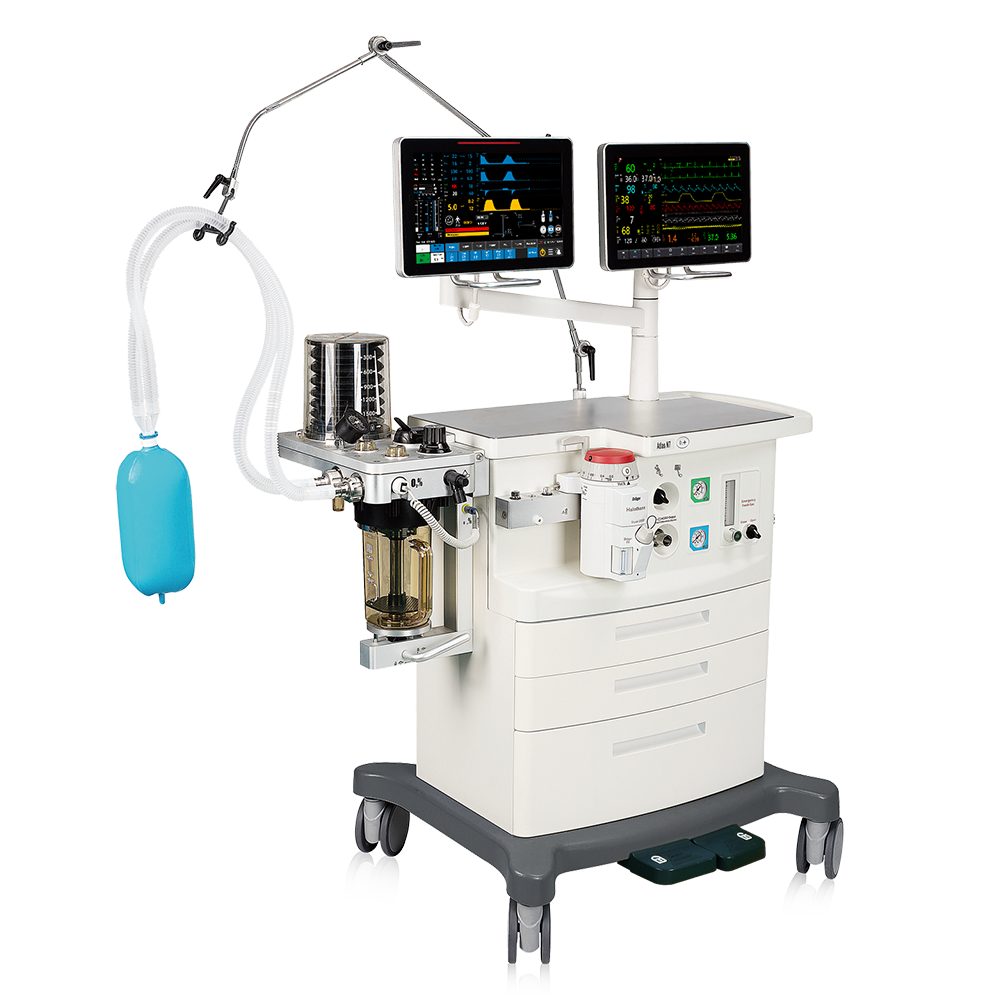

Northern MeditecNorthern Meditec Atlas N7 — premium anesthesia workstation (fully electronic, auto FiO2)
Premium anesthesia workstation — 15.6" TFT touch (17"/19" optional, integrated patient-monitor design), fully electronic gas mixer with one-key auto FiO2, gas-deficit auto-changeover (O2↔Air, N2O→O2), 4 simultaneous waveforms.
Commercial offer on request
Configuration, accessories, lead time and service tier are quoted to your scope. Our specialists return a tailored offer within two business hours.
- Manufacturer warranty
- Worldwide delivery
- Installation & training
- Full documentation pack
Overview
The Atlas N7 is the top of Northern Meditec's Atlas anesthesia workstation line — moving from semi-electronic to fully electronic gas mixing with auto FiO2 maintenance. The 15.6" TFT touch screen (17" / 19" optional) drives an integrated patient-monitor design with a special simple-operation layout; a secondary touch screen handles workbench controls. The electronic gas mixer measures fresh gas flow with a pressure sensor and includes functional test (system leaks + compliance calculation) with automatic gas-deficit changeover: if O2 is deficient → Air; if N2O is deficient → O2; with oxygen maintained to keep FiO2 if the fresh gas has been changed. Up to 4 waveforms display simultaneously on the same screen; 3 spirometry loops. Tidal volume 10–1500 mL across neonatal / pediatric / adult. Dual Selectatec vaporizer bar accepts Drager / Penlon / Northern. Flush O2 is both electronic and mechanical for backup. Four 125 mm wheels with 4 separate brakes (vs 2 brakes on N3/N5). Color-coded parameter units for at-a-glance distinction. H 149 cm × W 90 cm × D 65.6 cm.
Key features
- 15.6" TFT touch screen (17" / 19" optional) — 1366×768
- Integrated patient-monitor design with double touch screen
- Fully electronic gas mixer (unique design) — O2, N2O, Air via pressure sensor
- One-key Auto FiO2 — automatic flow adjustment to maintain target FiO2
- Gas-deficit auto-changeover: O2 ↔ Air, N2O → O2 with oxygen maintenance
- Functional test: system leak + compliance calculation
- Up to 4 simultaneous waveforms; 3 spirometry loops
- Tidal volume 10–1500 mL — neonatal / pediatric / adult
- Dual Selectatec vaporizer bar (Drager / Penlon / Northern)
- Flush O2 — electronic + mechanical backup
- Color-coded parameter units for instant distinction
- 4 wheels (125 mm) with 4 separate brakes
- Bypass switch + absorption switch status detection
- Modes: V-CMV, P-CMV, Standby, Manual/Spont; opt P-CMV, P-SIMV, PSV, PRVC
Clinical applications
Tertiary OR / cardiac / transplantOR — adult / pediatric / neonatalSpecialty OR
Gallery
Specifications
- Display
- 15.6" TFT touch, 1366×768 (17" / 19" optional)
- Gas mixing
- Fully electronic — O2, N2O, Air via pressure sensor
- Auto FiO2
- One-key — maintains target FiO2 with auto flow adjustment
- Auto-changeover
- O2 ↔ Air, N2O → O2 on gas deficit
- Waveforms
- Up to 4 simultaneous on same screen
- Vaporizer positions
- Dual Selectatec bar (Drager / Penlon / Northern)
- Tidal volume
- 10–1500 mL
- Patient range
- Neonatal / pediatric / adult
- Modes
- V-CMV, P-CMV, Standby, Manual/Spont (std); P-CMV, P-SIMV, PSV, PRVC (opt)
- Wheels
- 4× 125 mm with 4 separate brakes
- Dimensions
- H 149 × W 90 × D 65.6 cm
- Battery
- 1× 4800 mAh standard (opt. 2× 9600 mAh)
